Why simulate with CFD?

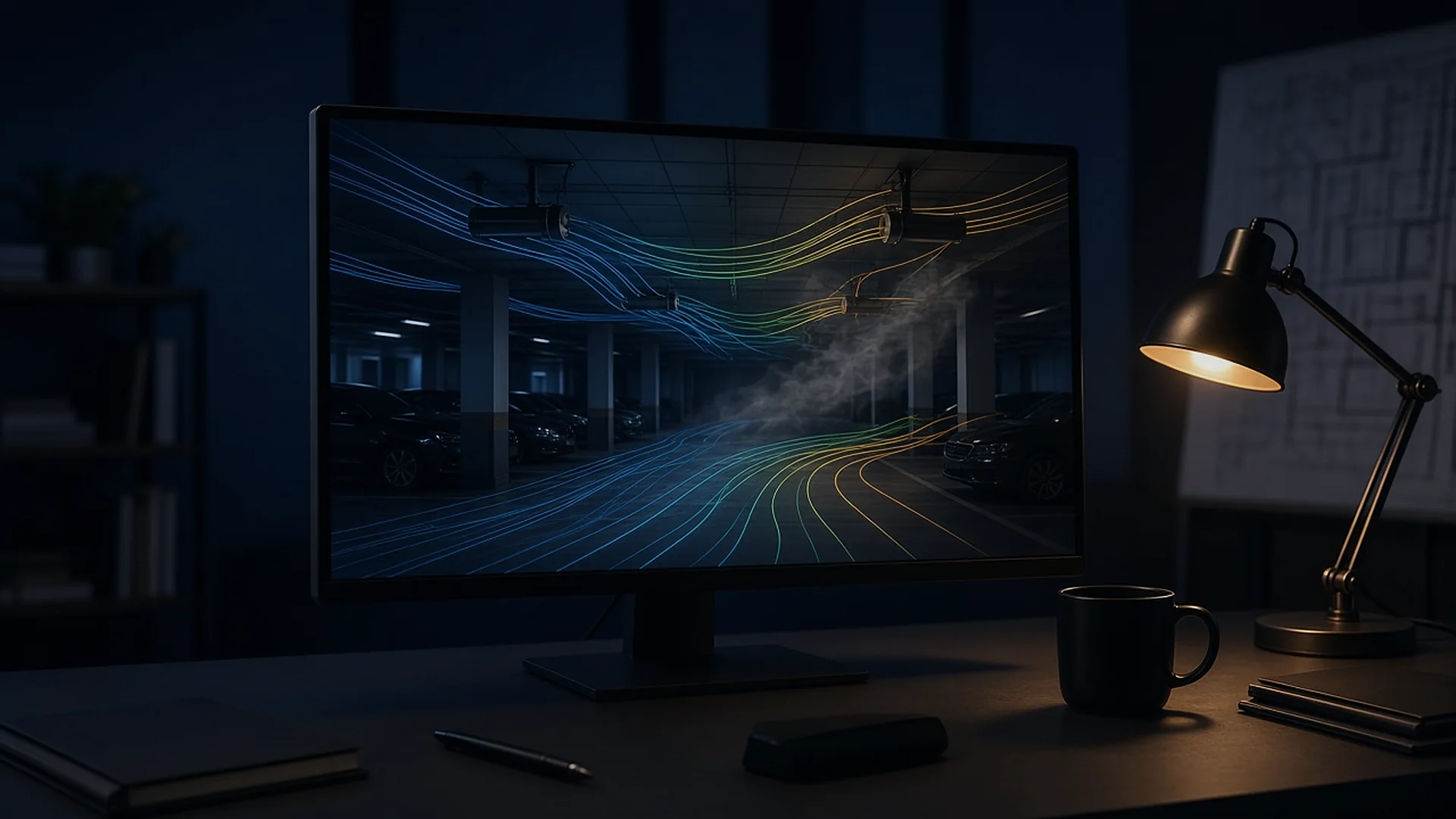

Hand calculations give volumes and pressures. CFD shows where air and smoke actually travel, for example around columns and beams, so jet-fan positions can be corrected before installation.
Engineering
HVAC & Smoke-Control Engineering
Heat-load, airflow and smoke-control calculations, CFD simulation, ventilation control and commissioning, with fans and control panels supplied by Powersense.
01Overview
Supply and engineering from one team
Powersense supplies fans, smoke-extraction units and control panels, and engineers the system they serve: duty calculation, CFD verification, control scenarios and measured commissioning. Heat-pump and VRF concepts are developed as part of the mechanical design.
Request a quote →
02Scope and process
Engineering scope and deliverables
- 01
Design criteria and heat load
Indoor conditions, occupancy and ventilation rates follow EN 16798-1 or ASHRAE 62.1, and cooling and heating loads are calculated for each zone.
DeliverableDesign criteria sheet, heat-load summary - 02
Airflow and duty point
Airflow, duct pressure loss and fan duty point are calculated, with filter loading and noise limits taken into account.
DeliverableDuct calculation, fan selection sheet - 03
Smoke and heat control concept
Smoke extraction, make-up air and escape-route protection are defined to the EN 12101 series and the fire-safety concept of the building.
DeliverableSmoke-control concept, scenario matrix - 04
CFD simulation
Airflow and smoke movement are simulated in the real geometry to check jet-fan positions, dead zones and smoke dilution.
DeliverableCFD report with velocity and temperature plots - 05
Control and automation
Detector signals, fan starters and dampers are integrated in a control panel that runs the ventilation scenarios and interfaces with the BMS.
DeliverableControl narrative, panel drawings, I/O list - 06
Installation support and commissioning
Airflow is measured and balanced against the design, and each scenario is tested together with the fire alarm and recorded.
DeliverableCommissioning report with measured values
03Standards
International standards applied
These standards form the technical basis for design and equipment selection. The exact set is confirmed for each project against the national regulations in force.
- EN 16798-1Energy performance of buildings: indoor environmental input parameters for ventilation design.
- ASHRAE 62.1Ventilation and acceptable indoor air quality: minimum outdoor-air rates.
- EN 12101-3Smoke and heat control systems: specification for powered smoke and heat exhaust ventilators.
- EN 12101-6Smoke and heat control systems: pressure differential systems (kits) for escape routes.
- ISO 13350Fans: performance testing of jet fans.
- EN 378-1Refrigerating systems and heat pumps: safety and environmental requirements.
04Products
Products we supply
- Axial and mixed-flow fans
- Duct-type and roof radial fans
- Axial smoke-extraction fans and jet fans
- High-pressure axial fans and acoustic fan boxes
- Ex-proof fans for explosive atmospheres
- Control panels and detector interfaces
05Project types
Typical project types
- Car parks and underground garages
- Malls and public buildings
- Industrial facilities
- Hotels and hospitals
- Commercial kitchens
- Plant and technical rooms
06Technical notes
Technical notes and FAQ
Do you design heat-pump and VRF systems?
Yes, as concepts within the mechanical design: load calculation, system selection, refrigerant safety to EN 378 and control integration. Equipment other than fans is sourced on request.
