- 01
Single-line diagram and load list
Incomers, feeders, motor starters and compensation are defined from the load list, the simultaneous demand and the planned expansion.
DeliverableApproved single-line diagram, load schedule
- 02
Short-circuit and selectivity check
The prospective fault level is calculated to IEC 60909, and breaker ratings and discrimination limits are verified to IEC 60947-2.
DeliverableFault-level and selectivity report
- 03
Assembly design verification
Temperature rise, short-circuit withstand, dielectric properties and degree of protection are verified by test, calculation or design rules under IEC 61439-1 and -2.
DeliverableDesign verification file
- 04

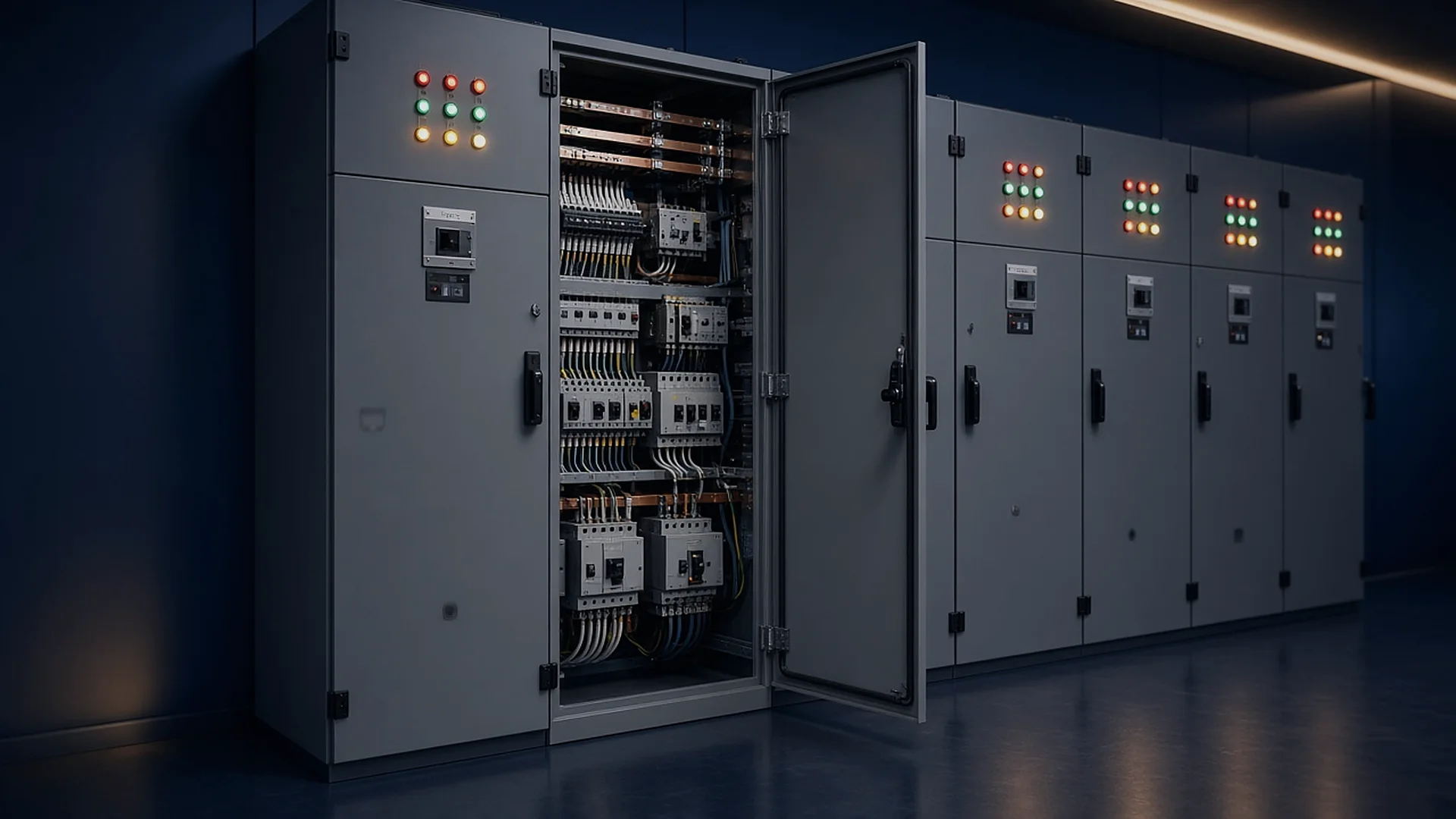

Enclosure, busbar and layout design
Busbars, enclosure, form of internal separation (Form 1 to 4b) and ventilation are dimensioned, and the layout is agreed before manufacture.
DeliverableGeneral arrangement drawing, busbar and enclosure calculation
- 05
Manufacture and routine verification
Assembly, wiring and labelling follow the approved drawings. Routine verification then covers inspection, dielectric testing and functional checks.
DeliverableRoutine test report, labelled wiring schedule
- 06
Installation, commissioning and handover
Delivery, positioning, termination, functional tests and protection settings are completed on site, and as-built drawings are supplied.
DeliverableCommissioning record, as-built documents
