ALKAN® · Waterproof & Dustproof Luminaires (IP65+)
Odin
36 W · 3,900 lm · IP66
Why this luminaire

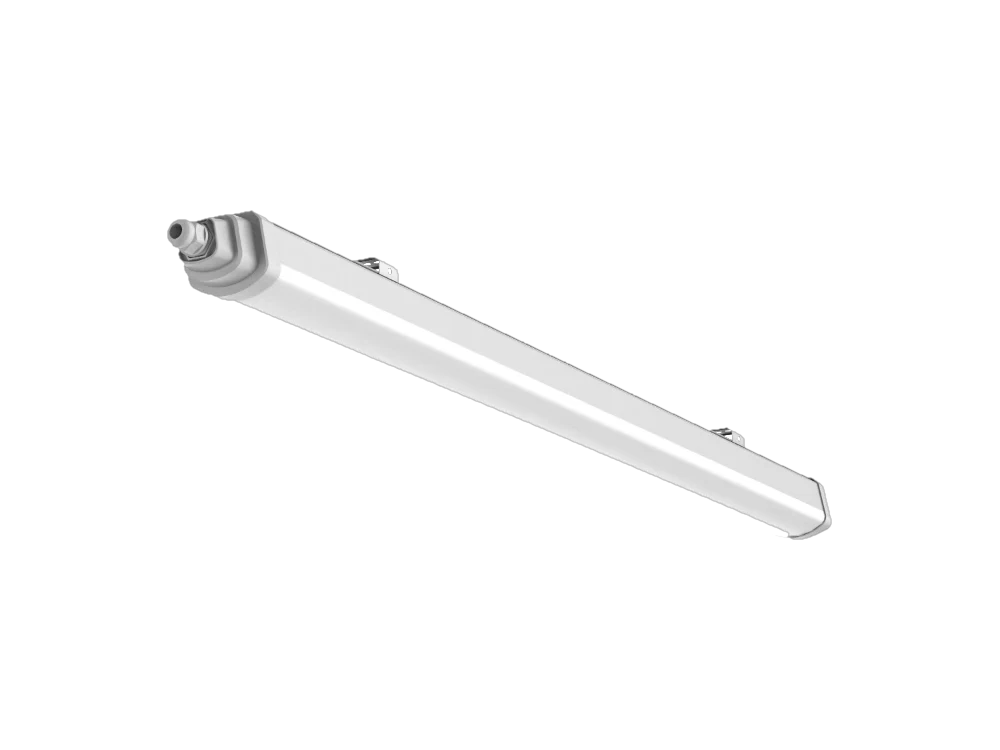

Odin: sealed light for damp and dusty areas
Odin is a sealed ALKAN® luminaire. It is made for car parks, workshops, technical rooms, stairwells and canopies, where moisture and dust would shorten the life of an open fitting. We plan it to EN 12464-1 in DIALux evo.
Built for the job
Polycarbonate does not corrode, which suits damp and aggressive atmospheres.
The diffuser turns the LED points into an even, softer light surface.
Dust-tight and protected against powerful water jets (EN 60529).
The operating range.
Mains supply.
LED lifetime.
Colour rendering index.
Where it fits
Covered and underground parking.
Plant rooms, workshops and storage.
Stairwells, passages and sheltered outdoor areas.
Lighting design criteria
EN 12464-1 sets the minimum average illuminance on the task area for each type of work or room.
An upper limit for discomfort glare from the luminaires, set per task.
Minimum uniformity across the task area and a minimum colour rendering index for each task.
Engineering notes
Keep cable glands and seals tight so that the IP rating is maintained after installation.
Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.
No dimming interface is specified for this luminaire. If your project needs one, we check the options with the manufacturer before we quote.
Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.
Certification and standards
CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKUTL series.
Coverage is stated as published by ALKAN®. Certificate copies come with every offer.
Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.
Questions we hear
Can it replace my existing luminaires?
In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.
What tolerances apply to these values?
Tolerances: power +5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.
Plan your project with Odin
Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.
Request a DIALux calculationTechnical specifications
| Power | 36 W |
|---|---|
| Luminous flux | 3,900 lm |
| Efficacy | 110 lm/W |
| Colour temperature | 6500 K |
| Colour rendering | Ra>80 |
| Ingress protection | IP66 |
| Ambient temperature | −20 °C to +40 °C |
| Supply | 220–240 VAC 50/60 Hz |
| LED lifetime | 35,000 h |
| Housing | Two-colour extruded polycarbonate |
| Cover / optic | Opal polycarbonate diffuser |
| Finish | grey |
| Certificates | CE declaration |
| Product code | Version | Power | Luminous flux | Efficacy | W × L × H | Weight | Datasheet (PDF) |
|---|---|---|---|---|---|---|---|
| 53.AKUTL 120TK36 | 36 W | 3,900 lm | 110 lm/W | 68 × 1200 × 59 mm | 0.60 kg |
Tolerances: power +5%, luminous flux −10%, efficacy −5%.
Sealed luminaire for even light in large spaces such as car parks, warehouses, workshops and factories. A plug-in connector simplifies installation.
