ALKAN® · Waterproof & Dustproof Luminaires (IP65+)
Karadeniz Slim
33–40 W · 3,500–4,000 lm · IP65
Why this luminaire
Karadeniz Slim: sealed light for damp and dusty areas
Karadeniz Slim is a sealed ALKAN® luminaire. It is made for car parks, workshops, technical rooms, stairwells and canopies, where moisture and dust would shorten the life of an open fitting. We plan it to EN 12464-1 in DIALux evo.
Built for the job
Polycarbonate does not corrode, which suits damp and aggressive atmospheres.
The diffuser turns the LED points into an even, softer light surface.
Dust-tight and protected against water jets (EN 60529).
The operating range.
Mains supply.
LED lifetime.
Colour rendering index.
Where it fits
Covered and underground parking.
Plant rooms, workshops and storage.
Stairwells, passages and sheltered outdoor areas.
Lighting design criteria
EN 12464-1 sets the minimum average illuminance on the task area for each type of work or room.
An upper limit for discomfort glare from the luminaires, set per task.
Minimum uniformity across the task area and a minimum colour rendering index for each task.
Engineering notes
Keep cable glands and seals tight so that the IP rating is maintained after installation.
Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.
No dimming interface is specified for this luminaire. If your project needs one, we check the options with the manufacturer before we quote.
Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.
Certification and standards
CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKUTL series.
Coverage is stated as published by ALKAN®. Certificate copies come with every offer.
Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.
Questions we hear
Can it replace my existing luminaires?
In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.
What tolerances apply to these values?
Tolerances: power +5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.
Plan your project with Karadeniz Slim
Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.
Request a DIALux calculationTechnical specifications
| Power | 33–40 W |
|---|---|
| Luminous flux | 3,500–4,000 lm |
| Efficacy | 100–105 lm/W |
| Colour temperature | 4000 K |
| Colour rendering | Ra>80 |
| Ingress protection | IP65 |
| Ambient temperature | −20 °C to +45 °C |
| Supply | 220–240 VAC 50/60 Hz |
| Driver | ENEC-certified, protected against voltage surges |
| LED lifetime | 60,000 h |
| Housing | 100% recycled polycarbonate |
| Cover / optic | 100% recycled opal polycarbonate diffuser |
| Finish | RAL 7035 |
| Certificates | CE declaration |
| Product code | Version | Power | Luminous flux | Efficacy | W × L × H | Weight | Datasheet (PDF) |
|---|---|---|---|---|---|---|---|
| 53.AKUTL 120PC36-S | 33 W | 3,500 lm | 105 lm/W | 88 × 1280 × 90 mm | 1.50 kg | ||
| 53.AKUTL 120PC40-S | 40 W | 4,000 lm | 100 lm/W | 88 × 1280 × 90 mm | 1.50 kg |
Tolerances: power +5%, luminous flux −10%, efficacy −5%.

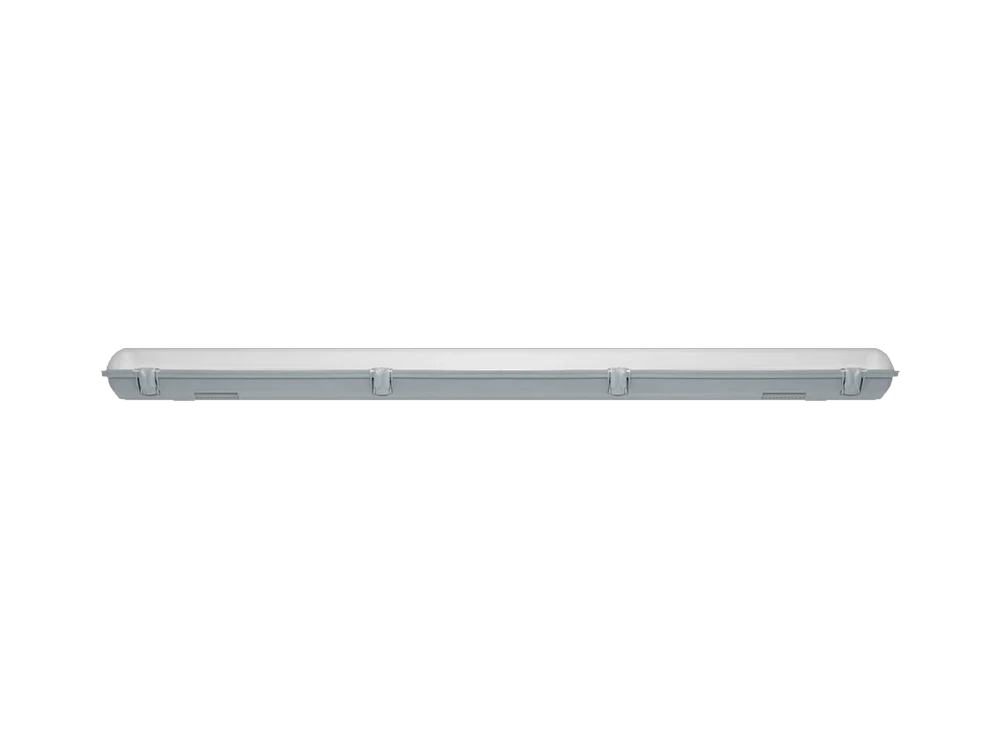

Sealed luminaire with a polycarbonate body and an opal diffuser held by polycarbonate latches. A seamless polyurethane gasket keeps out dust and moisture. Stainless-steel brackets allow surface or cable-tray mounting.
