ALKAN® · Floodlights & Sports

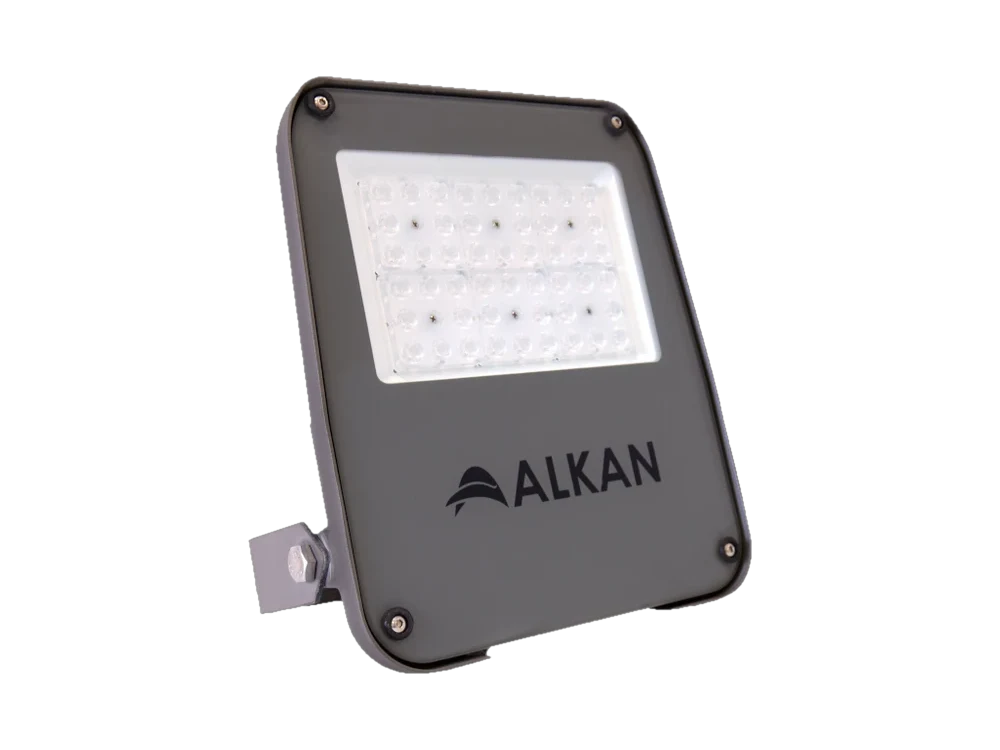

Nano Projektör
30–80 W · 4,410–12,240 lm · IP66
Why this luminaire
Nano Projektör: powerful light for pitches, yards and open areas
Nano Projektör is an ALKAN® floodlight. It is built for sports grounds, logistics yards, ports and building façades, where light has to reach far and stay even. Our engineers choose the variant and the optic in DIALux evo, so you install exactly the power the area needs.
Built for the job
Aluminium draws heat away from the LEDs, which protects light output and lifetime.
Tempered glass protects the LEDs and optics and is easy to keep clean.
Dust-tight and protected against powerful water jets (EN 60529).
Impact resistance to EN 62262.
The operating range.
A wide input voltage window.
LED lifetime.
Colour rendering index.
Where it fits
Training pitches, courts and club grounds.
Logistics yards, terminals and storage areas.
Building façades, squares and general area lighting.
Application by competition class
Per EN 12193: high-level national and international competition, usually with large spectator distances.
Mid-level competition such as regional and club matches.
Training, school sport and recreational play.
Engineering notes
Mast, pole or wall mounting with the bracket. Tilt and aiming points come from the DIALux evo calculation, and we hand them over as an aiming list.
Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.
No dimming interface is specified for this luminaire. If your project needs one, we check the options with the manufacturer before we quote.
Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.
Certification and standards
CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKPRL series.
ENEC: licence HN 69291508 from TÜV Rheinland InterCert for 53.AKPRL xxxN-y, 30–80 W.
CB test certificate DE 2-043953 (TÜV Rheinland LGA, 2025-02-20) for 53.AKPRL xxxN-y (IEC 60598-2-5).
Coverage is stated as published by ALKAN®. Certificate copies come with every offer.
Standards: EN 60598-1, EN 60598-2-5.
Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.
Questions we hear
Can it replace my existing luminaires?
In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.
What tolerances apply to these values?
Tolerances: power +5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.
Plan your project with Nano Projektör
Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.
Request a DIALux calculationTechnical specifications
| Power | 30–80 W |
|---|---|
| Luminous flux | 4,410–12,240 lm |
| Efficacy | 130–166 lm/W |
| Colour temperature | 4000 K / 6500 K |
| Colour rendering | Ra>70 |
| Optics | 30°, 60°, 90° |
| Ingress protection | IP66 |
| Impact resistance | Body IK09, glass IK08 |
| Ambient temperature | −40 °C to +50 °C |
| Supply | 184–264 VAC 50/60 Hz |
| Driver | ENEC-certified, protected against voltage surges |
| Surge protection | 10kV (optional) |
| LED lifetime | 60,000 h |
| Housing | Injection-moulded aluminium |
| Cover / optic | 4 mm clear tempered glass |
| Finish | electrostatic powder coating, textured grey |
| Standards | EN 60598-1, EN 60598-2-5 |
| Certificates | CE declarationENEC luminaire licenceCB test certificate |
| Product code | Version | Power | Luminous flux | Efficacy | W × L × H | Weight | Datasheet (PDF) |
|---|---|---|---|---|---|---|---|
| 53.AKPRL 030N-H | High-power LED | 30 W | 4,980 lm | 166 lm/W | 260 × 296 × 53 mm | 2.35 kg | |
| 53.AKPRL 040N-H | High-power LED | 40 W | 6,400 lm | 160 lm/W | 260 × 296 × 53 mm | 2.35 kg | |
| 53.AKPRL 050N-H | High-power LED | 50 W | 7,650 lm | 153 lm/W | 260 × 296 × 53 mm | 2.35 kg | |
| 53.AKPRL 060N-H | High-power LED | 60 W | 9,900 lm | 165 lm/W | 260 × 296 × 53 mm | 2.50 kg | |
| 53.AKPRL 070N-H | High-power LED | 70 W | 10,990 lm | 157 lm/W | 260 × 296 × 53 mm | 2.50 kg | |
| 53.AKPRL 080N-H | High-power LED | 80 W | 12,240 lm | 153 lm/W | 260 × 296 × 53 mm | 2.50 kg | |
| 53.AKPRL 030N-M | Mid-power LED | 30 W | 4,410 lm | 147 lm/W | 260 × 296 × 53 mm | 2.35 kg | |
| 53.AKPRL 040N-M | Mid-power LED | 40 W | 5,520 lm | 138 lm/W | 260 × 296 × 53 mm | 2.35 kg | |
| 53.AKPRL 050N-M | Mid-power LED | 50 W | 6,500 lm | 130 lm/W | 260 × 296 × 53 mm | 2.35 kg | |
| 53.AKPRL 060N-M | Mid-power LED | 60 W | 8,580 lm | 143 lm/W | 260 × 296 × 53 mm | 2.50 kg | |
| 53.AKPRL 070N-M | Mid-power LED | 70 W | 9,590 lm | 137 lm/W | 260 × 296 × 53 mm | 2.50 kg | |
| 53.AKPRL 080N-M | Mid-power LED | 80 W | 12,000 lm | 150 lm/W | 260 × 296 × 53 mm | 2.50 kg |
Tolerances: power +5%, luminous flux −10%, efficacy −5%.
Compact floodlight with an injection-moulded aluminium housing, electrostatic powder coating and 4 mm tempered glass.
