Planet 3X4
100–150 W · 14,600–21,150 lm · IP66
Why this luminaire

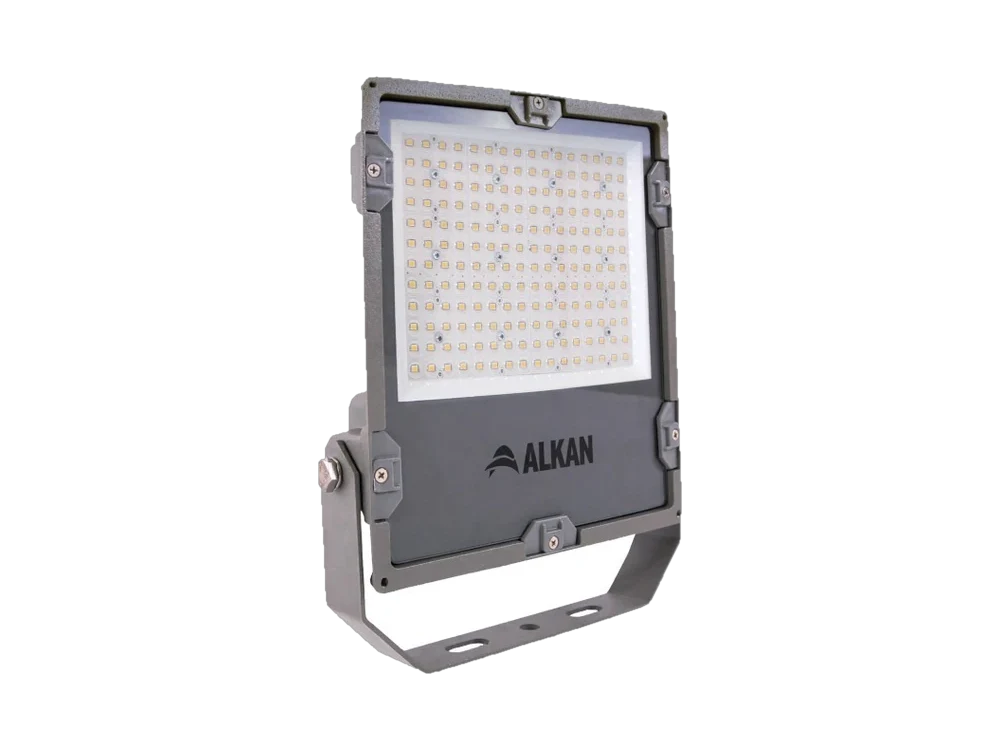

Planet 3X4: powerful light for pitches, yards and open areas
Planet 3X4 is an ALKAN® floodlight. It is built for sports grounds, logistics yards, ports and building façades, where light has to reach far and stay even. Our engineers choose the variant and the optic in DIALux evo, so you install exactly the power the area needs.
Built for the job
Aluminium draws heat away from the LEDs, which protects light output and lifetime.
Tempered glass protects the LEDs and optics and is easy to keep clean.
Dust-tight and protected against powerful water jets (EN 60529).
Impact resistance to EN 62262.
A wide input voltage window.
LED lifetime (L70B10).
Colour rendering index.
Where it fits
Training pitches, courts and club grounds.
Logistics yards, terminals and storage areas.
Building façades, squares and general area lighting.
Application by competition class
Per EN 12193: high-level national and international competition, usually with large spectator distances.
Mid-level competition such as regional and club matches.
Training, school sport and recreational play.
Engineering notes
Mast, pole or wall mounting with the bracket. Tilt and aiming points come from the DIALux evo calculation, and we hand them over as an aiming list.
Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.
Dimming interface: 0-10V. That allows dimming schedules and connection to a light management system.
Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.
Certification and standards
CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKPRL series.
Coverage is stated as published by ALKAN®. Certificate copies come with every offer.
Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.
Questions we hear
Can it replace my existing luminaires?
In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.
What tolerances apply to these values?
Tolerances: power +2.5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.
Plan your project with Planet 3X4
Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.
Request a DIALux calculationTechnical specifications
| Power | 100–150 W |
|---|---|
| Luminous flux | 14,600–21,150 lm |
| Efficacy | 132–152 lm/W |
| Colour temperature | 3000 K / 4000 K / 5700 K / 6500 K |
| Colour rendering | Ra>70 |
| Optics | asymmetric |
| Beam | Asymmetric (Optional) |
| Ingress protection | IP66 |
| Impact resistance | Body IK09, glass IK08 |
| Ambient temperature | −40 °C to +50 °C |
| Supply | 184–264 VAC 50/60 Hz |
| Power factor | 0.95 |
| Driver | ENEC-certified, protected against voltage surges |
| Surge protection | 6 kV |
| Control | 0–10 V |
| LED lifetime | 100,000 h (L70B10) / 100,000 h (L90) |
| Photobiological risk group | RG1 |
| Manufacturer warranty | 5 years |
| Housing | Injection-moulded aluminium |
| Cover / optic | 4 mm extra-clear tempered glass |
| Finish | electrostatic powder coating, textured grey |
| Certificates | CE declaration |
| Product code | Version | Power | Luminous flux | Efficacy | W × L × H | Weight | Datasheet (PDF) |
|---|---|---|---|---|---|---|---|
| 53.AKPRL 100P-M | 100 W | 15,200 lm | 152 lm/W | 301 × 345 × 70 mm | 3.00 kg | ||
| 53.AKPRL120P-M | 120 W | 17,880 lm | 149 lm/W | 301 × 345 × 70 mm | 3.30 kg | ||
| 53.AKPRL 140P-M | 140 W | 20,020 lm | 143 lm/W | 301 × 345 × 70 mm | 3.30 kg | ||
| 53.AKPRL 150P-M | 150 W | 21,150 lm | 141 lm/W | 301 × 345 × 70 mm | 3.30 kg | ||
| 53.AKPRL 100P-H | 100 W | 14,600 lm | 146 lm/W | 301 × 345 × 70 mm | 3.00 kg | ||
| 53.AKPRL120P-H | 120 W | 16,800 lm | 140 lm/W | 301 × 345 × 70 mm | 3.30 kg | ||
| 53.AKPRL 140P-H | 140 W | 19,040 lm | 136 lm/W | 301 × 345 × 70 mm | 3.30 kg | ||
| 53.AKPRL 150P-H | 150 W | 19,800 lm | 132 lm/W | 301 × 345 × 70 mm | 3.30 kg |
Tolerances: power +2.5%, luminous flux −10%, efficacy −5%.
Floodlight for outdoor and industrial areas such as factories, sports facilities, car parks, ports and shipyards, available in several wattages and optics.
