ALKAN® · Floodlights & Sports

Astro

200–300 W · 29,000–45,000 lm · IP66

Request a quote Request a DIALux calculation

Why this luminaire

Powerful, precise floodlighting for sport and large areas

Built for stadiums, sports fields and wide outdoor areas, where high flux, tight optics and robust housings decide the result.

Key facts

Protection IP66 — dust-tight, protected against powerful water jets
Impact resistance IK08 / IK10

Full datasheet per variant, ready for tender documents

Typical applications

Football and multi-sport pitches
Stadiums and arenas
Ports, yards and large outdoor areas

Why buy through Powersense

Official ALKAN® Lighting distributor for Montenegro
Datasheets and certificates supplied with every offer
No guesswork: DIALux evo calculation with real photometric data
Supply coordinated from the ALKAN® factory to your site, with local engineering support

Technical specifications

Power	200–300 W
Luminous flux	29,000–45,000 lm
Efficacy	135–155 lm/W
Colour temperature	3000 K / 4000 K / 5700 K / 6500 K
Colour rendering	Ra>70 / Ra>80
Optics	asymmetric
Beam	Asymmetric (Optional)
Ingress protection	IP66
Impact resistance	Body IK10, glass IK08
Ambient temperature	−40 °C to +50 °C
Supply	184–264 VAC 50/60 Hz
Power factor	0.95
Driver	ENEC-certified, protected against voltage surges
Surge protection	6 kV
Control	DALI, 0–10 V
LED lifetime	100,000 h (L90B10) / 100,000 h (L70B10)
Photobiological risk group	RG1
Manufacturer warranty	5 years
Housing	Injection-moulded aluminium
Cover / optic	4 mm extra-clear tempered glass
Finish	electrostatic powder coating, textured grey
Certificates	CE declarationENEC luminaire licenceCB test certificate

Certification and standards

CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKPRL series.

CE 2025 (PDF)

ENEC: licence HN 69291440 from TÜV Rheinland InterCert for 53.AKPRL xAy, 300–⁠1500 W.

ENEC HN 69291440 (PDF)

ENEC: licence HN 69291785 from TÜV Rheinland InterCert for 53.AKPRL 1Axxxx / 2Axxxx(-M), 400–⁠1200 W.

ENEC HN 69291785 (PDF)

CB test certificate DE 2-⁠045797 (TÜV Rheinland LGA, 2025-12-09) for 53.AKPRL 1Axxxx(-M) / 2Axxxx(-M) (IEC 60598-⁠2-⁠5).

CB DE 2-045797 (PDF)

Coverage is stated as published by ALKAN®. Certificate copies come with every offer.

Product code	Version	Power	Luminous flux	Efficacy	W × L × H	Weight	Datasheet (PDF)
53.AKPRL 1A0200		200 W	31,000 lm	155 lm/W	390 × 410 × 126 mm	7.20 kg	PDF
53.AKPRL 1A0250		250 W	38,250 lm	153 lm/W	390 × 410 × 126 mm	7.20 kg	PDF
53.AKPRL 1A0300		300 W	45,000 lm	150 lm/W	390 × 410 × 126 mm	7.40 kg	PDF
53.AKPRL 1A0XXX	High-power LED				390 × 410 × 126 mm		PDF
53.AKPRL 1A0200-M		200 W	29,000 lm	145 lm/W	390 × 410 × 126 mm	7.20 kg	PDF
53.AKPRL 1A0250-M		250 W	35,000 lm	140 lm/W	390 × 410 × 126 mm	7.20 kg	PDF
53.AKPRL 1A0300-M		300 W	40,500 lm	135 lm/W	390 × 410 × 126 mm	7.40 kg	PDF

Tolerances: power +2.5%, luminous flux −10%, efficacy −5%.

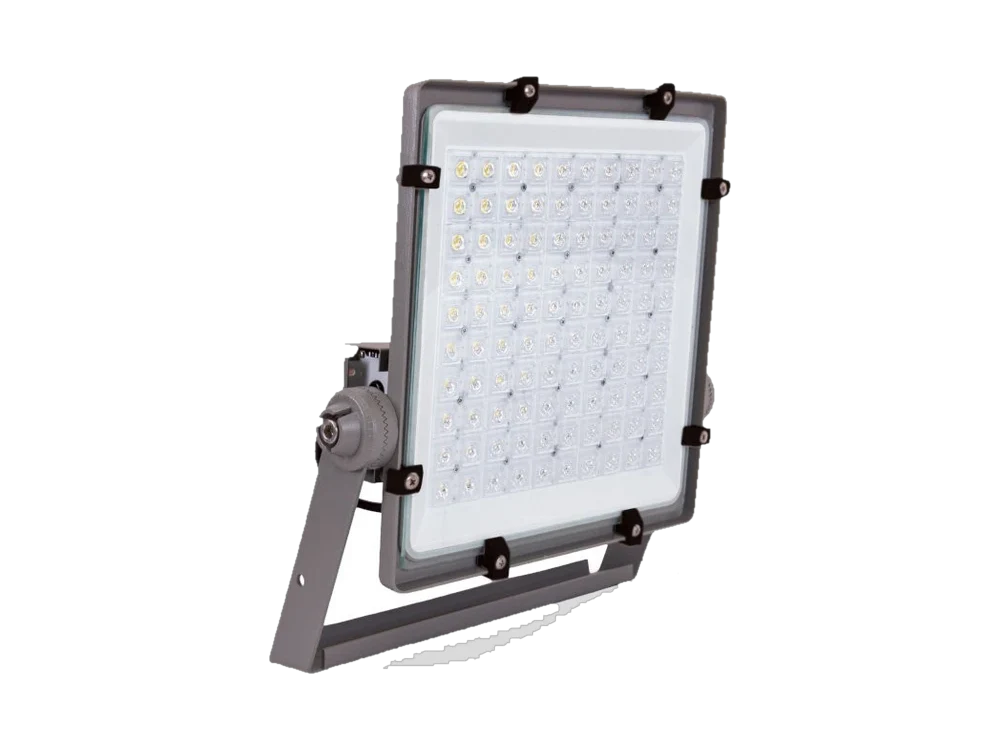

High-power floodlight with a die-cast aluminium housing and extra-clear tempered glass. Suitable for factories, sports facilities, ports, shipyards, car parks and logistics centres.

Engineering

Engineering & project notes

Optics

Optics, beam angles and photometry are defined per variant; the right optic is chosen per project in the lighting calculation.

Standards & calculation

Projects are calculated to EN 12193 (sports lighting): horizontal and vertical illuminance, uniformity and glare rating for the required class.

Installation

Mounting, cable entry and electrical connection follow the installation instructions supplied with each luminaire. Our engineers can supervise installation and commissioning.
