ALKAN® · Street & Road Lighting

Neva Nano Tedaş

39–58 W · 5,265–8,272 lm · IP66

Request a quote Request a DIALux calculation

Why this luminaire

Neva Nano Tedaş: efficient, uniform light for roads and streets

Neva Nano Tedaş is an ALKAN® road luminaire. It is made for streets, residential roads, car parks and public spaces, where uniformity and low running costs matter. We plan every project to EN 13201 in DIALux evo and choose the variant that meets the lighting class with the least energy.

Built for the job

Die-cast aluminium body

Aluminium draws heat away from the LEDs, which protects light output and lifetime.

4 mm extra-clear tempered glass

Tempered glass protects the LEDs and optics and is easy to keep clean.

IP66

Dust-tight and protected against powerful water jets (EN 60529).

IK09 · IK08

Impact resistance to EN 62262.

220–240 VAC

Mains supply.

60,000 hours

LED lifetime.

Colour rendering Ra>70

Colour rendering index.

TEDAŞ version

Version built to the specifications of TEDAŞ, the Turkish electricity distribution company.

Where it fits

Streets and roads

Urban streets, collector roads and through roads.

Residential areas

Residential streets, paths and cycle routes.

Car parks and squares

Open car parks, squares and public spaces.

Road lighting classes

M classes

Per EN 13201: motorised traffic on roads with medium to high driving speeds; based on road surface luminance.

C classes

For conflict areas such as junctions, roundabouts and shopping streets; based on illuminance.

P classes

For pedestrians and cyclists on footways, cycle paths and low-speed residential streets; based on illuminance.

Engineering notes

Mounting

Mounting options vary by model. Pole height, spacing and tilt come from the EN 13201 calculation.

Choosing the optic

Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.

Controls

No dimming interface is specified for this luminaire. If your project needs one, we check the options with the manufacturer before we quote.

Maintenance

Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.

Certification and standards

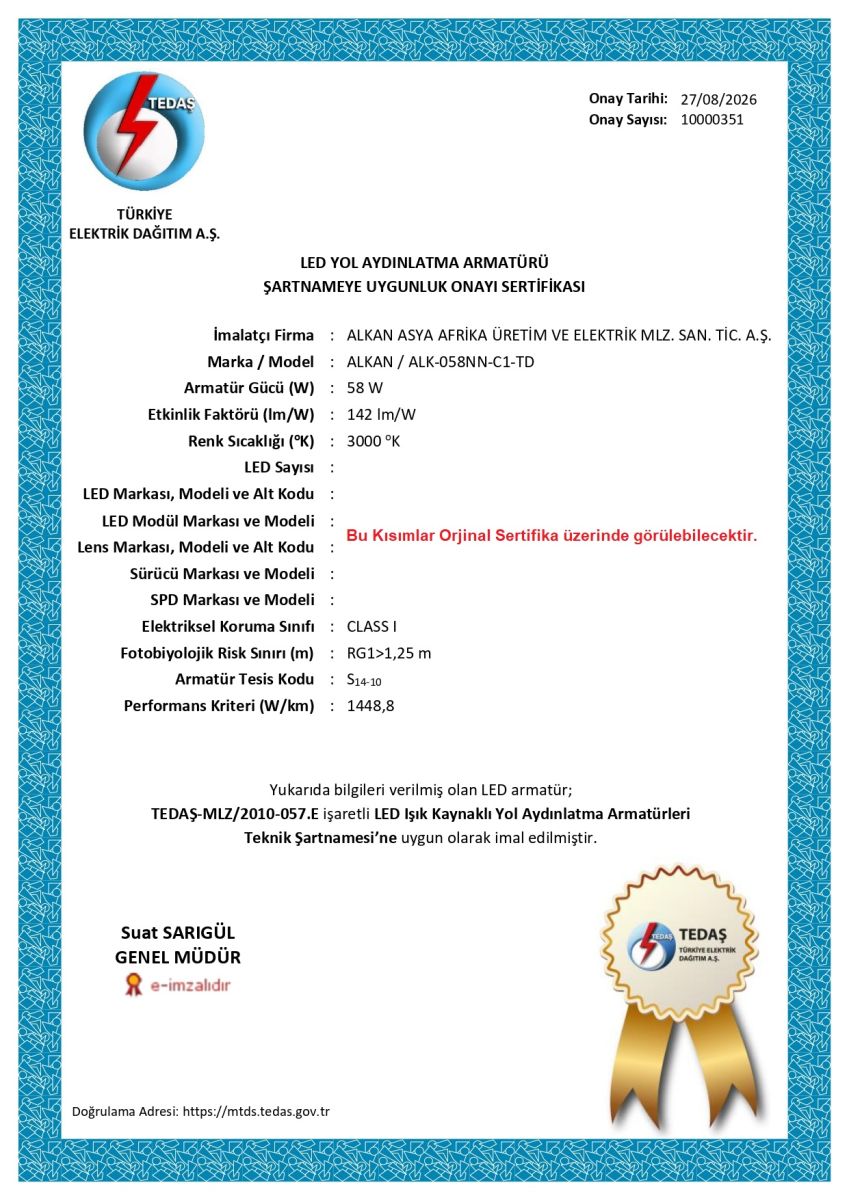

TEDAŞ conformity approval certificates: 058.

TEDAŞ 058 (JPG)

Coverage is stated as published by ALKAN®. Certificate copies come with every offer.

Standards: EN 55015, EN 60529, EN 60598-1, EN 60598-2-3, EN 61347-2-13, EN 61547, EN 62031, EN 62262, EN 62384, EN 62471.

Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.

Questions we hear

Can it replace my existing luminaires?

In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.

What tolerances apply to these values?

Tolerances: power +2.5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.

Plan your project with Neva Nano Tedaş

Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.

Request a DIALux calculation

Technical specifications

Power	39–58 W
Luminous flux	5,265–8,272 lm
Efficacy	135–142 lm/W
Colour temperature	3000 K
Colour rendering	Ra>70
Optics	asymmetric
Beam	Asymmetric
Ingress protection	IP66
Impact resistance	Body IK09, glass IK08
Ambient temperature	−40 °C to +50 °C
Supply	220–240 VAC 50/60 Hz
Power factor	≥0.95
Electrical class	Class I
Driver	ENEC-certified, protected against voltage surges
Surge protection	10 kV
Control	D4i, Zhaga socket
LED lifetime	100,000 h (L90)
Photobiological risk group	RG1
Manufacturer warranty	8 years
Housing	Injection-moulded aluminium
Cover / optic	4 mm extra-clear tempered glass
Finish	electrostatic powder coating, textured grey
Standards	EN 60529, EN 60598-1, EN 60598-2-3, EN 61347-2-13, EN 61547, EN 62031, EN 62262, EN 62384, EN 62471
Certificates	TEDAŞ approval

Product code	Version	Power	Luminous flux	Efficacy	W × L × H	Weight	TEDAŞ facility code	Performance (W/km)	Datasheet (PDF)
ALK-039NN-C1-TD		39 W	5,265 lm	135 lm/W	240 × 561 × 59 mm	3.20 kg	S15-8	962.5	PDF
ALK-058NN-C1-TD		58 W	8,272 lm	142 lm/W	240 × 561 × 59 mm	3.20 kg	S14-10	1448.8	PDF

Tolerances: power +2.5%, luminous flux −10%, efficacy −5%.

TEDAŞ: approval certificate.

Road and street luminaire approved by TEDAŞ and made in Türkiye. Injection-moulded aluminium housing, a D4i driver, a Zhaga socket for smart-city nodes and a tool-free latch.
