ALKAN® · Street & Road Lighting

Venüs Small Tedaş

137–190 W · 21,509–30,590 lm · IP66

Request a quote Request a DIALux calculation

Why this luminaire

Venüs Small Tedaş: efficient, uniform light for roads and streets

Venüs Small Tedaş is an ALKAN® road luminaire. It is made for streets, residential roads, car parks and public spaces, where uniformity and low running costs matter. We plan every project to EN 13201 in DIALux evo and choose the variant that meets the lighting class with the least energy.

Built for the job

Die-cast aluminium body

Aluminium draws heat away from the LEDs, which protects light output and lifetime.

4 mm clear tempered glass

Tempered glass protects the LEDs and optics and is easy to keep clean.

IP66

Dust-tight and protected against powerful water jets (EN 60529).

IK08 · IK09

Impact resistance to EN 62262.

+40 °C to +50 °C

The operating range.

220–240 VAC

Mains supply.

Colour rendering Ra>70

Colour rendering index.

TEDAŞ version

Version built to the specifications of TEDAŞ, the Turkish electricity distribution company.

Where it fits

Streets and roads

Urban streets, collector roads and through roads.

Residential areas

Residential streets, paths and cycle routes.

Car parks and squares

Open car parks, squares and public spaces.

Road lighting classes

M classes

Per EN 13201: motorised traffic on roads with medium to high driving speeds; based on road surface luminance.

C classes

For conflict areas such as junctions, roundabouts and shopping streets; based on illuminance.

P classes

For pedestrians and cyclists on footways, cycle paths and low-speed residential streets; based on illuminance.

Engineering notes

Mounting

Mounting options vary by model. Pole height, spacing and tilt come from the EN 13201 calculation.

Choosing the optic

Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.

Controls

Dimming interfaces: DALI, 1-10V. That allows dimming schedules and connection to a light management system.

Maintenance

Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.

Certification and standards

CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKYAL series.

CE 2025 (PDF)

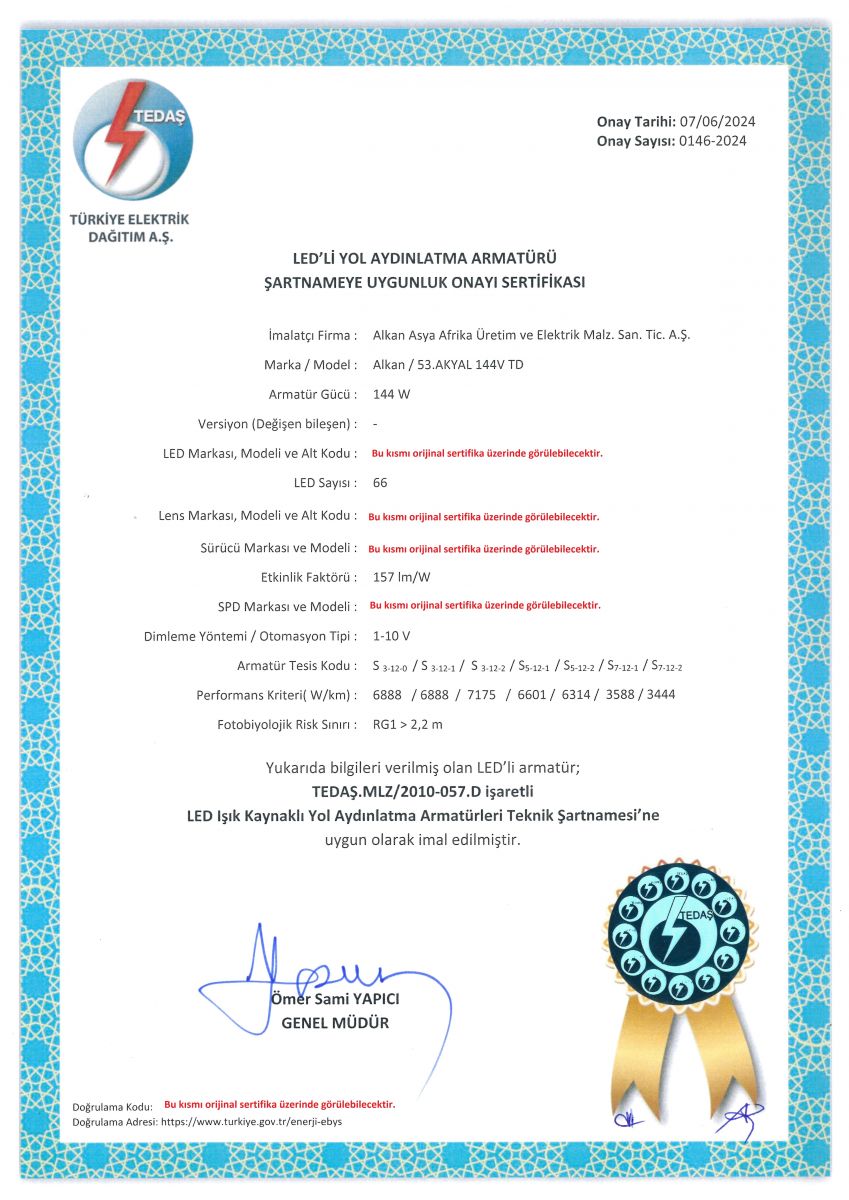

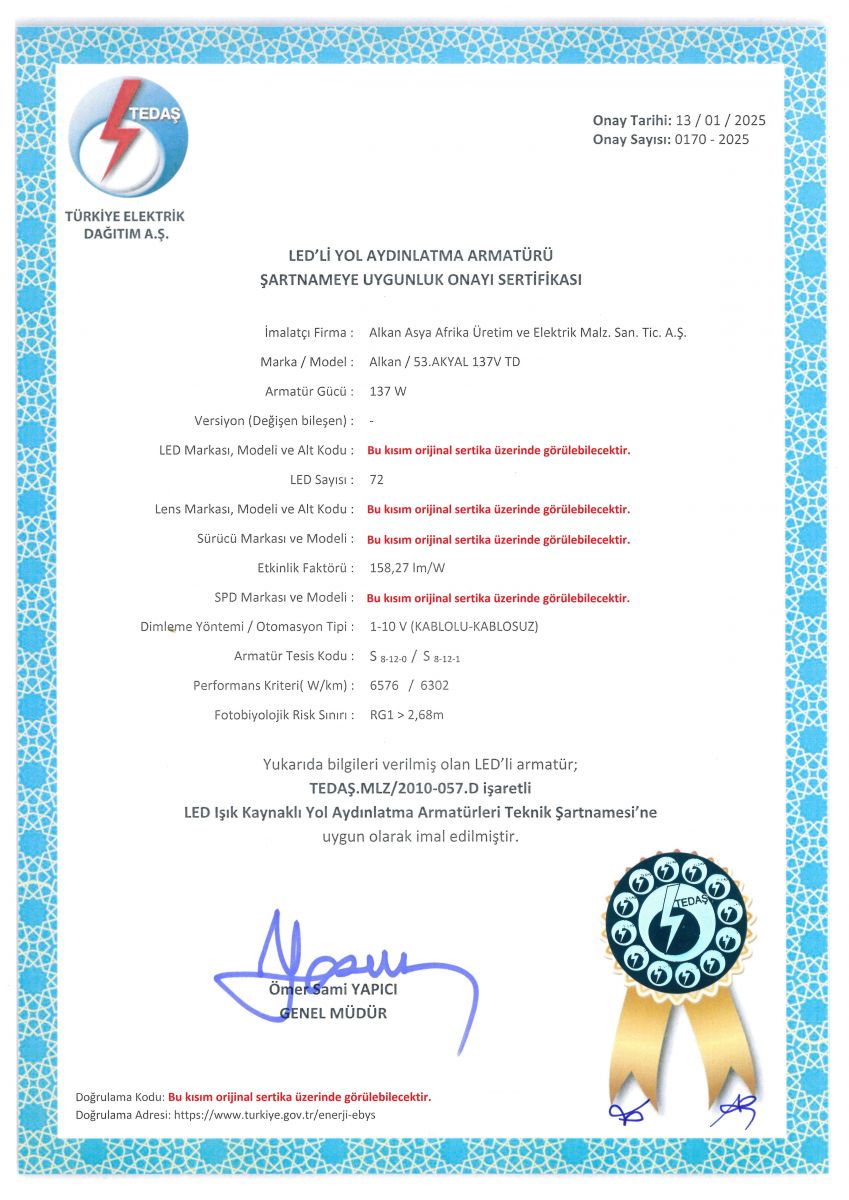

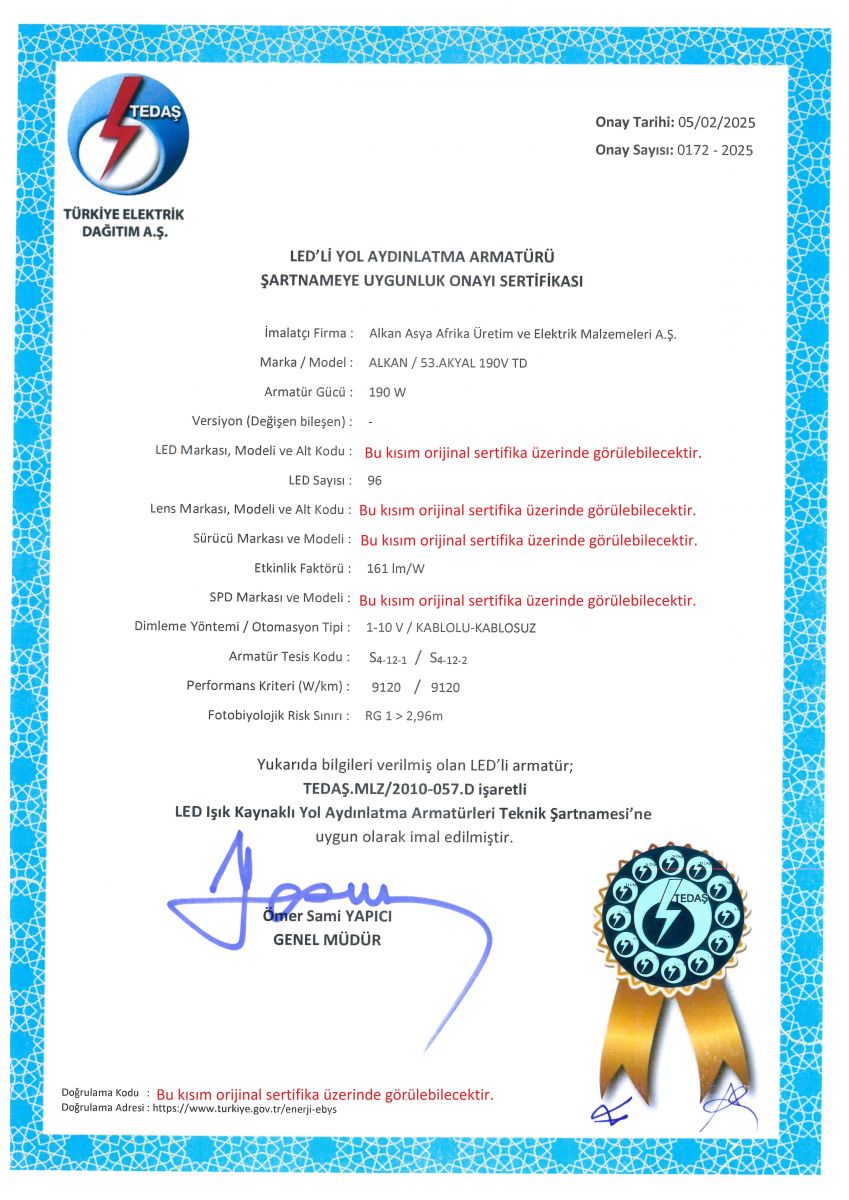

TEDAŞ conformity approval certificates: 137V, 144V, 157V, 190V.

TEDAŞ 137V (JPG)TEDAŞ 144V (JPG)TEDAŞ 157V (JPG)TEDAŞ 190V (JPG)

Coverage is stated as published by ALKAN®. Certificate copies come with every offer.

Standards: EN 55015, EN 60529, EN 60598-1, EN 60598-2-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 61643-11, EN 62031, EN 62262, EN 62384, EN 62471.

Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.

Questions we hear

Can it replace my existing luminaires?

In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.

What tolerances apply to these values?

Tolerances: power +2.5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.

Plan your project with Venüs Small Tedaş

Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.

Request a DIALux calculation

Technical specifications

Power	137–190 W
Luminous flux	21,509–30,590 lm
Efficacy	137–161 lm/W
Colour temperature	4000 K
Colour rendering	Ra>70
Ingress protection	IP66
Impact resistance	IK08
Ambient temperature	−40 °C to +50 °C
Supply	220–240 VAC 50/60 Hz (Driver: 184-264 VAC 50/60Hz)
Electrical class	Class I
Driver	ENEC-certified, protected against voltage surges
LED lifetime	60,000 h
Housing	Injection-moulded aluminium
Cover / optic	4 mm clear tempered glass
Finish	electrostatic powder coating, textured grey
Wind area (EPA)	0.15 m²
Mounting	0°, 5°, 10°, 15° tilt adjustment
Spigot	Ø42–60 mm
Standards	EN 60598-1, EN 60598-2-3
Certificates	CE declarationTEDAŞ approval

Product code	Power	Luminous flux	Efficacy	W × L × H	Weight	Datasheet (PDF)
53.AKYAL 137V TD	137 W	21,683 lm	158 lm/W	298 × 500 × 103 mm	6.15 kg	PDF
53.AKYAL 144V TD	144 W	22,608 lm	157 lm/W	298 × 500 × 103 mm	6.30 kg	PDF
53.AKYAL 157V TD	157 W	21,509 lm	137 lm/W	298 × 500 × 103 mm	6.24 kg	PDF
53.AKYAL 190V TD	190 W	30,590 lm	161 lm/W	298 × 500 × 103 mm	6.25 kg	PDF

Tolerances: power +2.5%, luminous flux −10%, efficacy −5%.

TEDAŞ: approval certificate.

Road, street and path luminaire built to TEDAŞ technical specifications, with cooling fins integrated into the injection-moulded aluminium housing. The adjustable bracket allows side-entry or post-top mounting, and a hinged cover gives easy maintenance access.
