ALKAN® · Street & Road Lighting
Venüs Nano Mid Power Tedaş
29–79 W · 4,263–11,885 lm · IP66
Why this luminaire
Venüs Nano Mid Power Tedaş: efficient, uniform light for roads and streets
Venüs Nano Mid Power Tedaş is an ALKAN® road luminaire. It is made for streets, residential roads, car parks and public spaces, where uniformity and low running costs matter. We plan every project to EN 13201 in DIALux evo and choose the variant that meets the lighting class with the least energy.
Built for the job
Aluminium draws heat away from the LEDs, which protects light output and lifetime.
Tempered glass protects the LEDs and optics and is easy to keep clean.
Dust-tight and protected against powerful water jets (EN 60529).
Impact resistance to EN 62262.
The operating range.
Mains supply.
LED lifetime.
Colour rendering index.
Version built to the specifications of TEDAŞ, the Turkish electricity distribution company.
Where it fits
Urban streets, collector roads and through roads.
Residential streets, paths and cycle routes.
Open car parks, squares and public spaces.
Road lighting classes
Per EN 13201: motorised traffic on roads with medium to high driving speeds; based on road surface luminance.
For conflict areas such as junctions, roundabouts and shopping streets; based on illuminance.
For pedestrians and cyclists on footways, cycle paths and low-speed residential streets; based on illuminance.
Engineering notes
Mounting options vary by model. Pole height, spacing and tilt come from the EN 13201 calculation.
Optics and beam angles are defined per variant. We compare them in DIALux evo with your geometry and pick the one that reaches the target with the fewest luminaires.
Dimming interfaces: DALI, 1-10V. That allows dimming schedules and connection to a light management system.
Install and connect following the instructions supplied with the luminaire. Clean the cover periodically to keep the designed light levels; the calculation already includes a maintenance factor.
Certification and standards
CE: the manufacturer’s EC declaration of conformity under Low Voltage Directive 2014/35/EU (January 2025) names the AKYAL series.

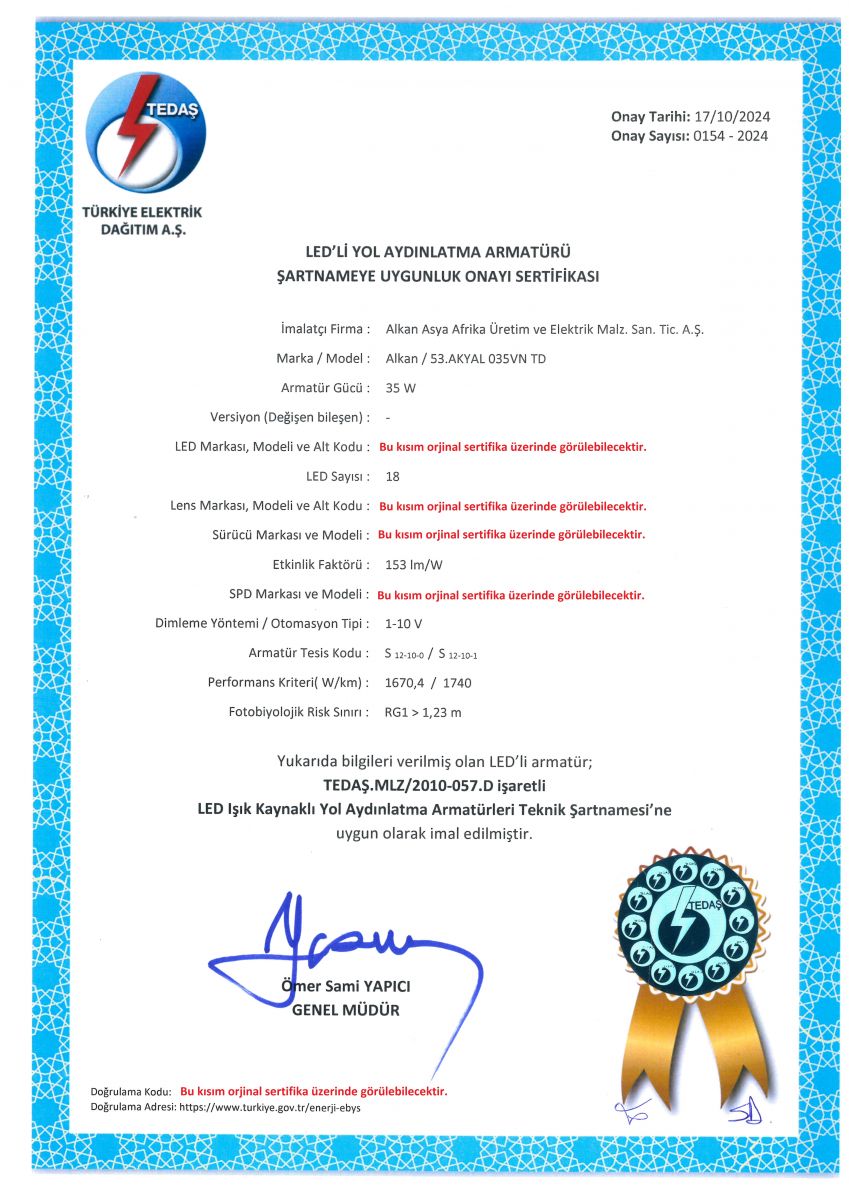

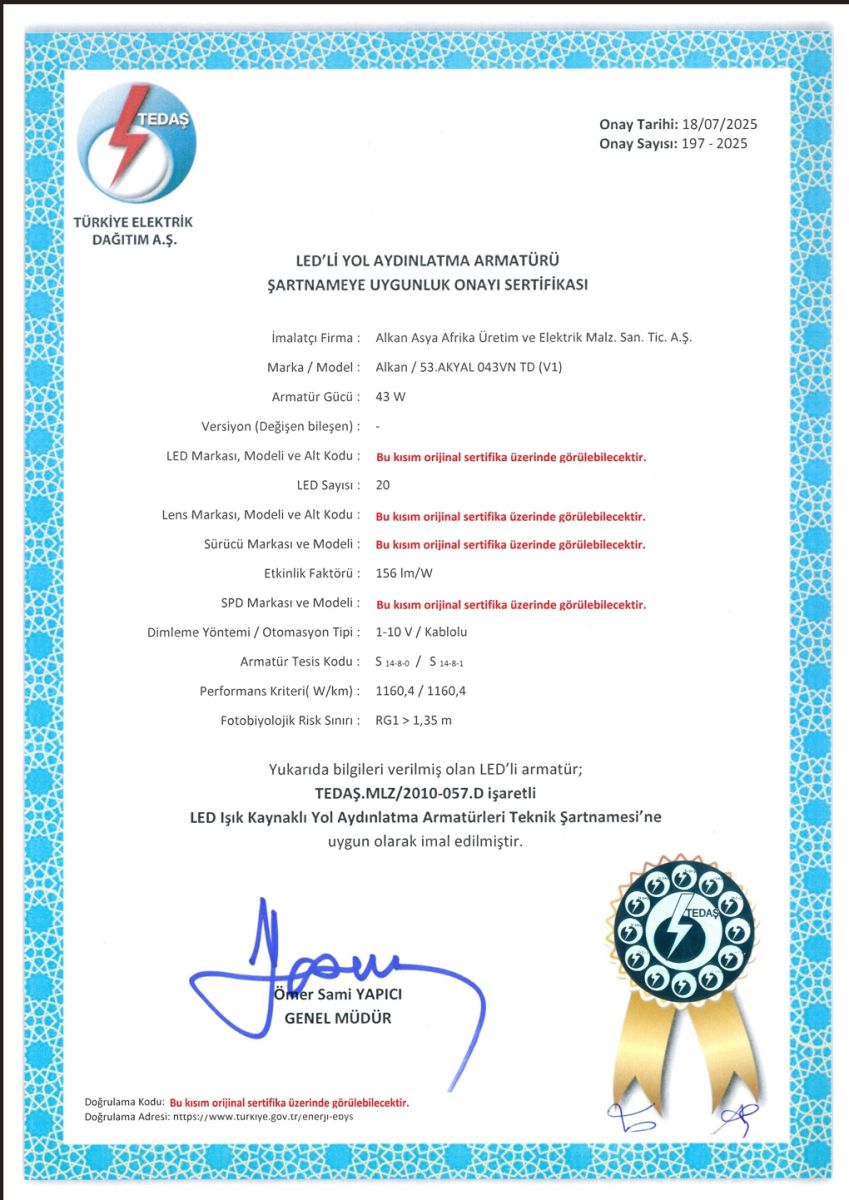

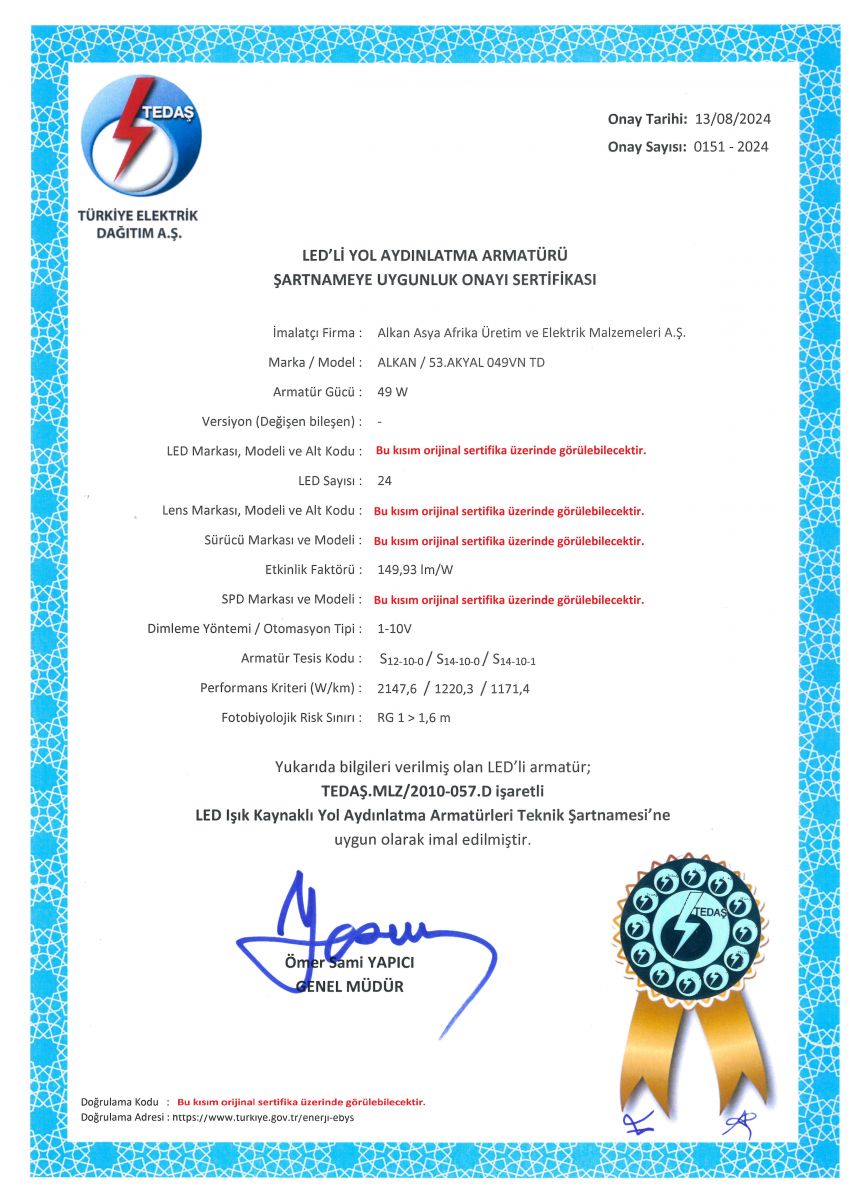

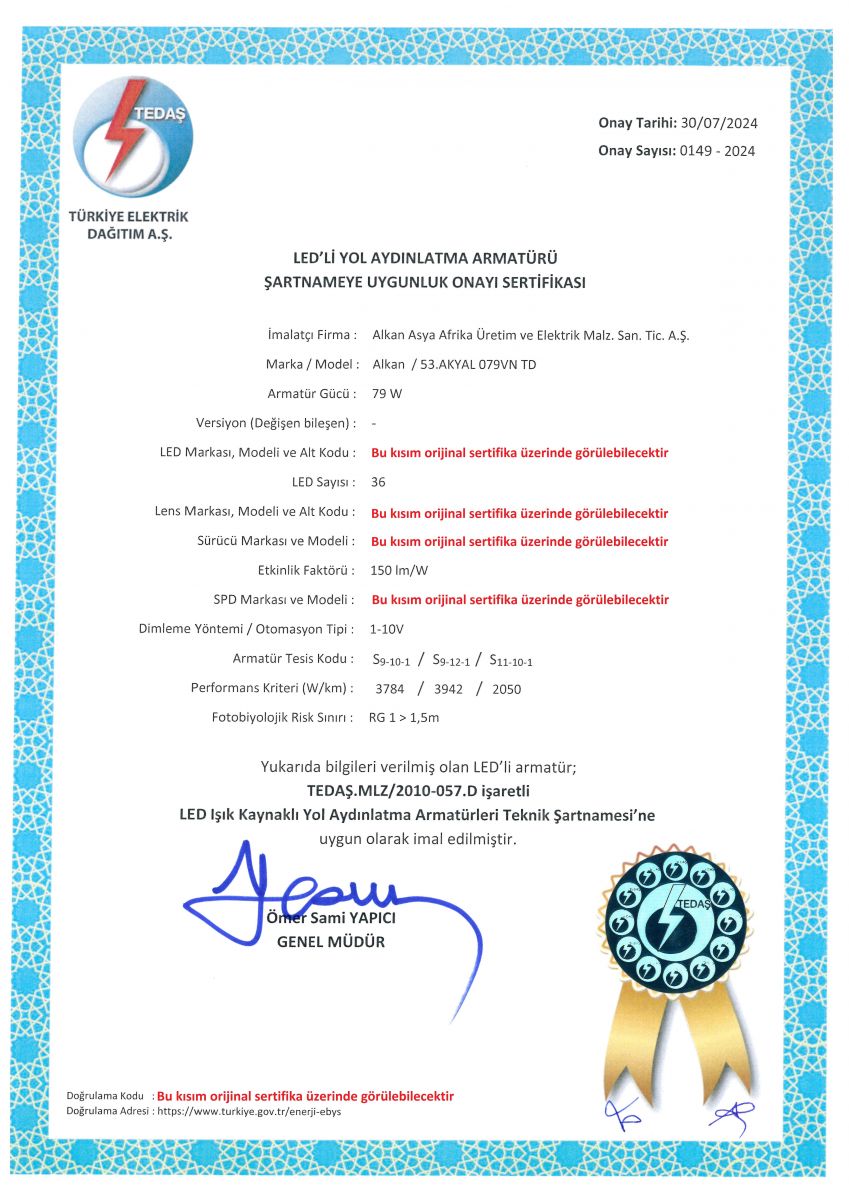

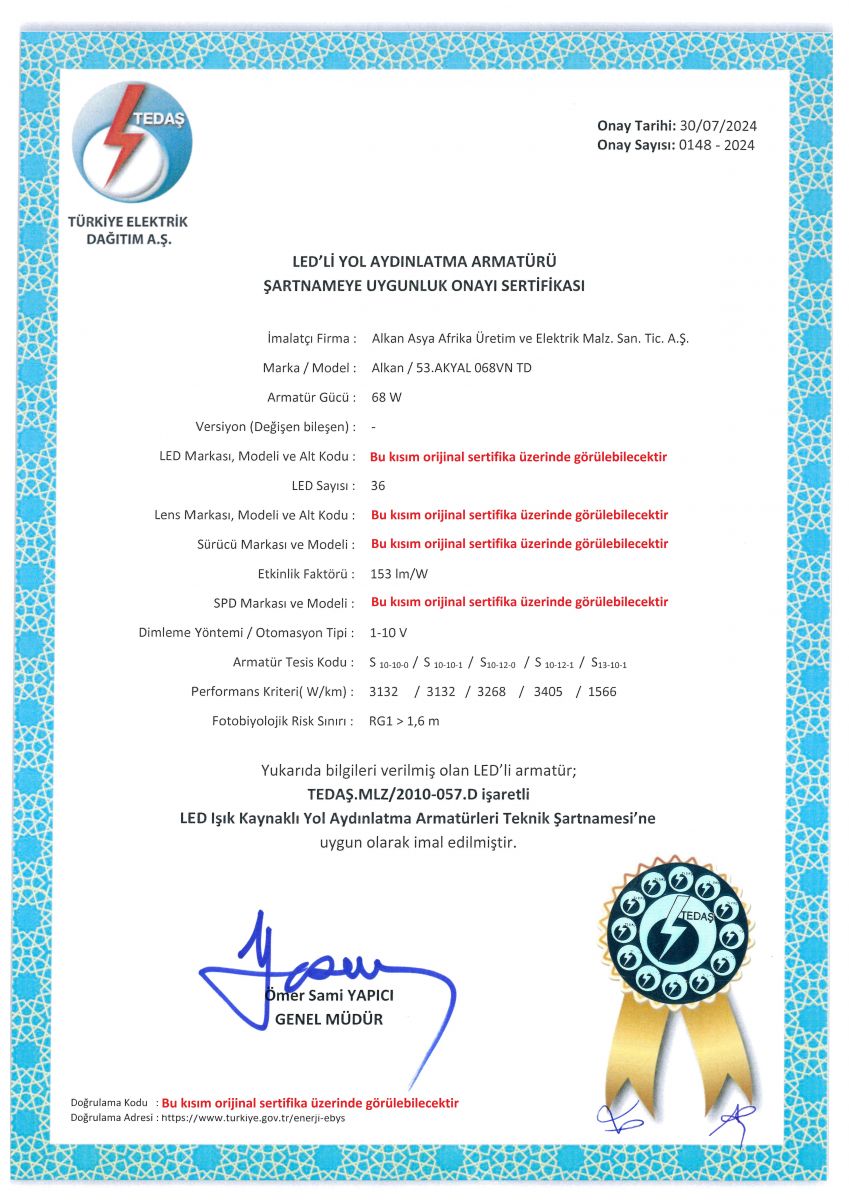

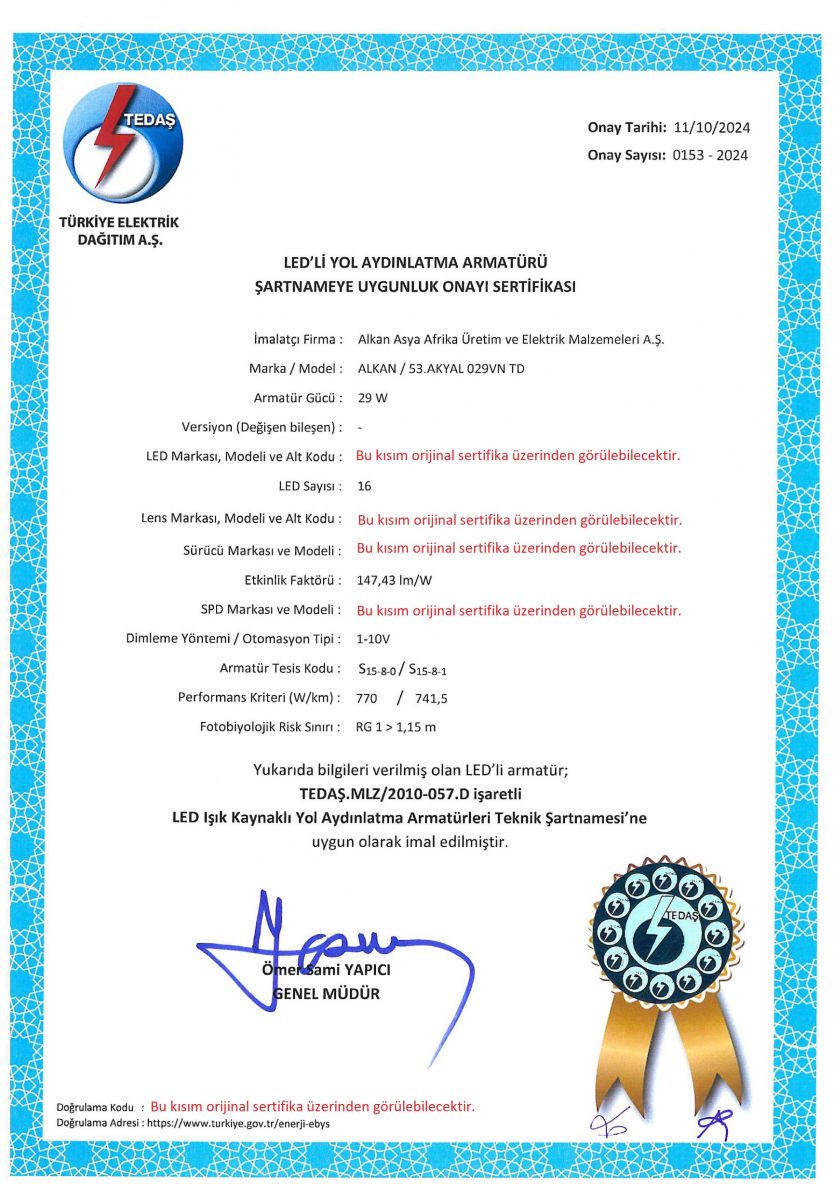

TEDAŞ conformity approval certificates: 029VN, 035VN, 043VN, 049VN, 068VN, 079VN.
Coverage is stated as published by ALKAN®. Certificate copies come with every offer.
Standards: EN 55015, EN 60529, EN 60598-1, EN 60598-2-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 61643-11, EN 62031, EN 62262, EN 62384, EN 62471.
Datasheets for every variant are in the variants table on this page; LDT/IES photometric files are available on request.
Questions we hear
Can it replace my existing luminaires?
In most retrofit projects, yes. We check the existing mounting points and the target values in a calculation before we quote, so you know the result in advance.
What tolerances apply to these values?
Tolerances: power +5%, luminous flux −10%, efficacy −5%. Our calculations take this into account.
Plan your project with Venüs Nano Mid Power Tedaş
Send us drawings, photos or a few measurements of the site. You get a DIALux layout, the quantities and an offer from the official ALKAN® distributor.
Request a DIALux calculationTechnical specifications
| Power | 29–79 W |
|---|---|
| Luminous flux | 4,263–11,885 lm |
| Efficacy | 147–156 lm/W |
| Colour temperature | 4000 K |
| Colour rendering | Ra>70 |
| Ingress protection | IP66 |
| Impact resistance | Body IK09, glass IK08 |
| Ambient temperature | −40 °C to +50 °C |
| Supply | 220–240 VAC 50/60 Hz (Driver: 184-264 VAC 50/60Hz) |
| Electrical class | Class I |
| Driver | ENEC-certified, protected against voltage surges |
| LED lifetime | 60,000 h |
| Housing | Injection-moulded aluminium |
| Cover / optic | 4 mm clear tempered glass |
| Finish | electrostatic powder coating, textured grey |
| Wind area (EPA) | 0.08 m² |
| Mounting | 0°, 5°, 10°, 15° tilt adjustment |
| Spigot | Ø42–60 mm |
| Standards | EN 60598-1, EN 60598-2-3 |
| Certificates | CE declarationTEDAŞ approval |
| Product code | Version | Power | Luminous flux | Efficacy | W × L × H | Weight | Datasheet (PDF) |
|---|---|---|---|---|---|---|---|
| 53.AKYAL 029VN TD | 29 W | 4,263 lm | 147 lm/W | 251 × 401 × 54 mm | 2.70 kg | ||
| 53.AKYAL 035VN TD | 35 W | 5,355 lm | 153 lm/W | 251 × 401 × 54 mm | 2.70 kg | ||
| 53.AKYAL 043VN TD (V1) | 43 W | 6,708 lm | 156 lm/W | 251 × 401 × 54 mm | 2.70 kg | ||
| 53.AKYAL 043VN TD | 43 W | 6,708 lm | 156 lm/W | 251 × 401 × 54 mm | 2.70 kg | ||
| 53.AKYAL 049VN TD | 49 W | 7,350 lm | 150 lm/W | 251 × 401 × 54 mm | 2.70 kg | ||
| 53.AKYAL 068VN TD (V1) | 68 W | 10,404 lm | 153 lm/W | 251 × 401 × 54 mm | 2.85 kg | ||
| 53.AKYAL 068VN TD | 68 W | 10,404 lm | 153 lm/W | 251 × 401 × 54 mm | 2.85 kg | ||
| 53.AKYAL 079VN TD (V1) | 79 W | 11,885 lm | 150 lm/W | 251 × 401 × 54 mm | 2.85 kg | ||
| 53.AKYAL 079VN TD | 79 W | 11,885 lm | 150 lm/W | 251 × 401 × 54 mm | 2.85 kg |
Tolerances: power +5%, luminous flux −10%, efficacy −5%.
TEDAŞ: approval certificate.
Street luminaire with a die-cast aluminium housing, electrostatic powder coating and 4 mm tempered glass.
